How Car Radiator and Air Conditioning Systems Operate Together

Introduction

Maintaining a comfortable temperature in your vehicle involves more than just adjusting the air conditioning. It requires a well-integrated system where the car radiator and air conditioning (AC) work in tandem to ensure optimal performance and comfort. Understanding how these systems interact can help you manage your vehicle’s climate control more effectively and address any potential issues. This article delves into the operation and integration of car radiator and air conditioning systems, exploring their functions, benefits, common problems, and maintenance tips.

1. Understanding Car Radiator Systems

Basic Functionality

Engine Cooling:

The primary role of a car radiator is to regulate the engine’s temperature. As the engine operates, it generates a significant amount of heat. To prevent overheating, the radiator dissipates this heat from the engine coolant into the atmosphere. Coolant, which circulates through the engine and radiator, absorbs heat and transfers it to the radiator. Here, the heat is released through a series of fins and tubes, allowing cooler air to lower the temperature of the coolant before it returns to the engine.

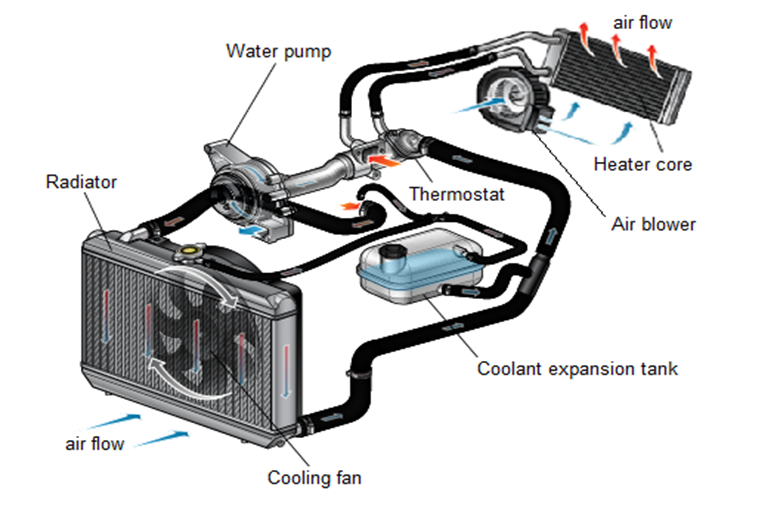

Key Components:

Radiator Core: The main part where heat exchange occurs, usually made from aluminum or copper.

Coolant: A mixture of water and antifreeze that absorbs and transfers heat.

Thermostat: Regulates the flow of coolant to maintain an optimal engine temperature.

Water Pump: Circulates coolant through the engine and radiator.

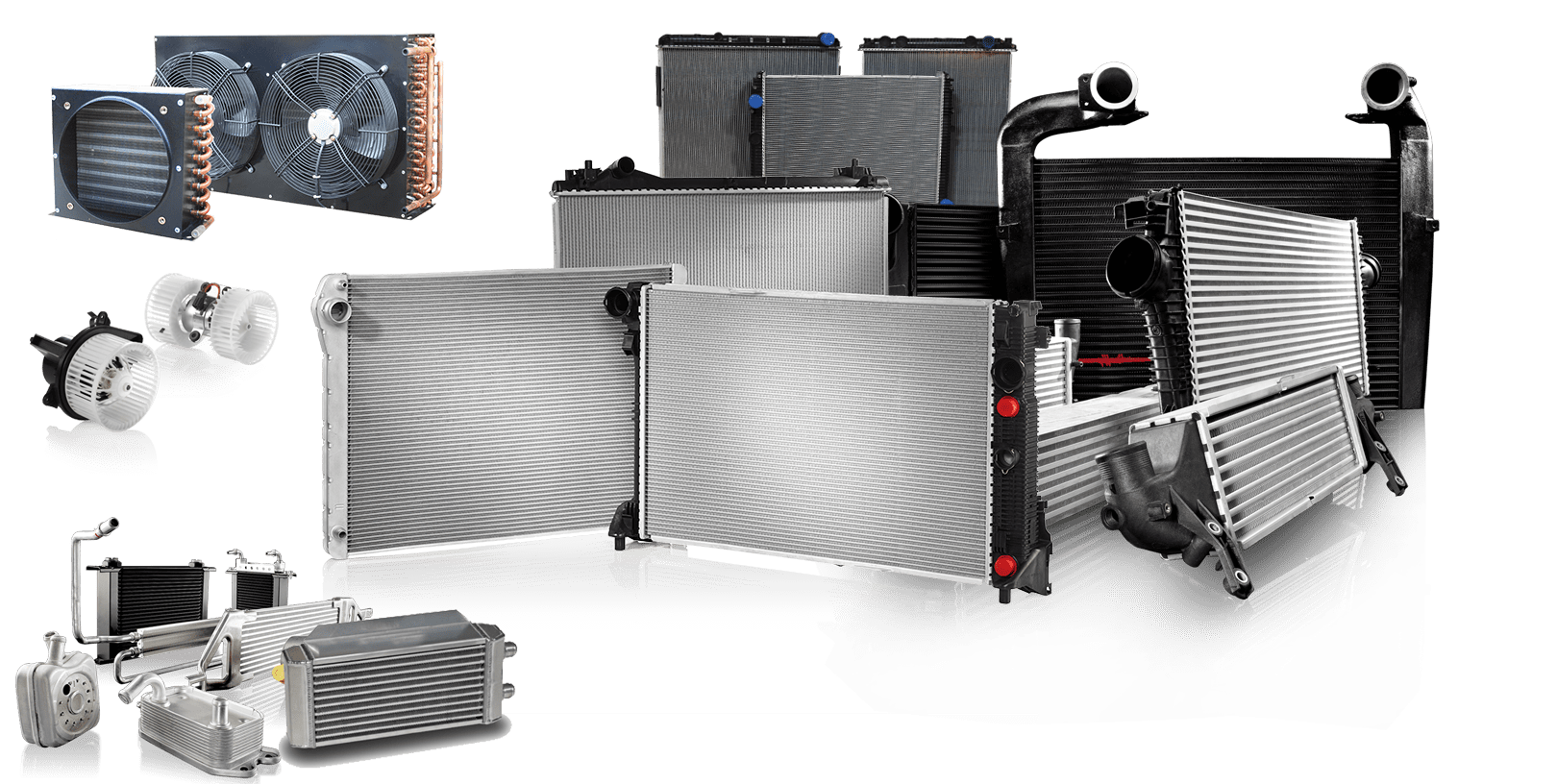

Types of Radiators

Traditional Radiators:

Traditional radiators are typically constructed from aluminum or copper and feature a network of tubes and fins designed to maximize heat dissipation. These radiators are effective but can be relatively bulky.

Modern High-Efficiency Radiators:

High-efficiency radiators use advanced materials and design innovations to enhance cooling performance. They are often lighter and more compact, offering improved heat dissipation and reduced weight, which contributes to better overall vehicle efficiency.

2. Basics of Car Air Conditioning Systems

How Air Conditioning Works

Core Components:

Compressor: Pumps refrigerant through the system and compresses it, raising its pressure and temperature.

Condenser: Located at the front of the vehicle, it releases heat from the refrigerant into the outside air, allowing the refrigerant to cool and condense into a liquid.

Evaporator: Absorbs heat from the cabin air, causing the refrigerant to evaporate and cool the air inside the vehicle.

Refrigerant: A fluid that changes from gas to liquid and back to absorb and release heat efficiently.

Cooling Mechanism:

The air conditioning system works by circulating refrigerant through various components. The compressor pressurizes the refrigerant, which then flows to the condenser where it releases heat and turns into a liquid. This liquid refrigerant moves through the evaporator inside the cabin, where it absorbs heat from the air and cools the interior before returning to the compressor to start the cycle again.

Different Air Conditioning Systems

Manual vs. Automatic Climate Control:

Manual Systems: Allow the driver to adjust temperature and fan speed manually. This system requires direct user input to maintain desired comfort levels.

Automatic Systems: Use sensors to automatically adjust temperature, fan speed, and airflow based on the settings and cabin conditions, providing a more consistent and hands-free experience.

Dual-Zone and Multi-Zone Systems:

These systems allow different temperature settings for various areas of the vehicle. Dual-zone systems typically have separate controls for the driver and passenger, while multi-zone systems can provide different temperatures for rear seats and other compartments, enhancing overall passenger comfort.

3. Integration of Radiator and Air Conditioning Systems

Shared Components

Condenser Role:

In many vehicles, the condenser serves a dual function. It is used in both the engine cooling system and the air conditioning system. Positioned at the front of the vehicle, the condenser helps dissipate heat from the refrigerant in the AC system and also aids in cooling the engine’s coolant. This shared role makes the condenser a crucial component in managing overall vehicle temperature.

Heat Exchange Dynamics:

The heat generated by the engine affects the air conditioning system's performance. Effective integration ensures that the radiator and AC system manage heat exchange efficiently. This interaction helps maintain the engine’s optimal operating temperature while providing a comfortable cabin environment.

Benefits of Integrated Systems

Enhanced Efficiency:

Integrating the radiator and air conditioning systems can enhance overall vehicle efficiency. By optimizing the use of shared components, such as the condenser, the vehicle can manage heat more effectively, leading to improved engine performance and better AC operation.

Compact Design:

A combined system reduces the number of separate components and minimizes space requirements. This integration leads to a more streamlined and compact vehicle design, which can contribute to weight reduction and improved fuel efficiency.

4. Common Issues and Troubleshooting

Typical Problems

Overheating:

One of the common issues with integrated systems is engine overheating, which can occur if the radiator is not functioning correctly. Overheating can also affect the air conditioning system’s performance, leading to reduced cooling efficiency and increased cabin temperature.

Leaks and Faults:

Leaks in the coolant or refrigerant systems can compromise the performance of both the radiator and the air conditioning system. Coolant leaks can lead to engine overheating, while refrigerant leaks can reduce the AC system’s cooling capacity.

Troubleshooting Tips

Diagnostic Checks:

Check Coolant Levels: Ensure that the coolant is at the appropriate level and look for any signs of leaks.

Inspect the Condenser: Examine the condenser for damage or blockages that could affect both engine cooling and air conditioning performance.

Monitor Temperature Gauges: Pay attention to engine temperature and air conditioning performance to detect any anomalies.

Maintenance Practices:

Regular Inspections: Schedule regular inspections of both systems to ensure they are functioning properly and to identify potential issues early.

Address Issues Promptly: Resolve any signs of leaks or malfunctions immediately to prevent further damage and maintain system efficiency.

5. Maintenance and Care

Routine Maintenance

Radiator Care:

Check Coolant Levels: Regularly monitor and top up coolant as needed.

Flush the Radiator: Perform periodic flushes to remove debris and old coolant, ensuring effective heat dissipation.

Air Conditioning Maintenance:

Replace Cabin Air Filters: Regularly change air filters to maintain air quality and system efficiency.

Service the AC System: Have the air conditioning system serviced annually to check refrigerant levels, inspect components, and address any issues.

When to Seek Professional Help

Signs of Major Issues:

Persistent Overheating: If the engine consistently overheats despite proper coolant levels, consult a professional.

Reduced AC Efficiency: If the air conditioning system fails to cool effectively or shows signs of malfunction, seek professional inspection and repair.

Choosing a Mechanic:

Reputation and Experience: Choose a service provider with a good reputation and experience in handling integrated radiator and AC systems.

Certification: Ensure the mechanic has the necessary certifications and qualifications to perform repairs and maintenance.

Conclusion

Mastering vehicle climate control requires a comprehensive understanding of how the car radiator and air conditioning systems operate together. By recognizing the interaction between these systems and maintaining them properly, you can ensure optimal vehicle performance and passenger comfort. Regular maintenance and timely repairs are essential to keep both systems functioning efficiently, providing a smooth and enjoyable driving experience.

FAQs

1.How does the radiator influence the performance of the air conditioning system?

The radiator and air conditioning system share the condenser, which helps dissipate heat from the refrigerant. Effective operation of the radiator ensures proper cooling and optimal air conditioning performance.

2.What are common signs that indicate problems with my radiator or AC system?

Symptoms include engine overheating, reduced cooling efficiency, unusual noises, and fluid leaks. Monitoring these signs can help identify and address potential issues early.

3.How often should I perform maintenance on my vehicle’s radiator and air conditioning system?

It’s recommended to service both systems annually or as specified by your vehicle’s manufacturer to maintain optimal performance and prevent issues.

4.Can issues with the integrated systems affect my vehicle’s performance?

Yes, problems with the radiator or air conditioning system can impact overall vehicle performance, including engine overheating and reduced cabin comfort.

5.What steps should I take if my air conditioning system is not working effectively?

Check for common issues such as refrigerant levels, leaks, or blockages. If the problem persists, consult a professional for a thorough inspection and necessary repairs.
